Product Overview

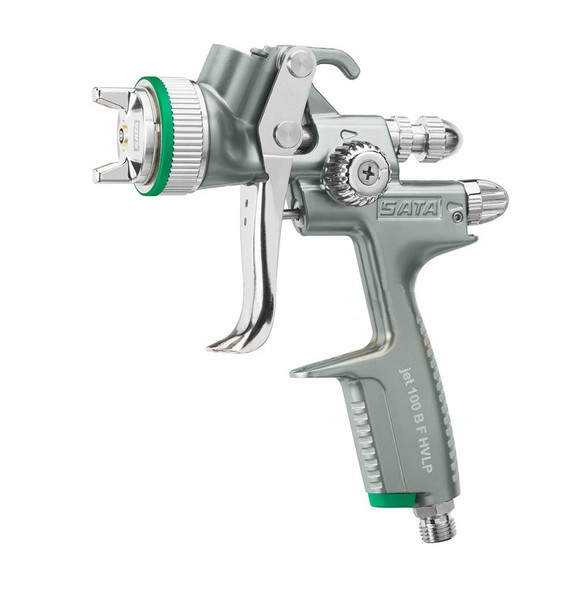

SATA jet 100 B F HVLP 1.7 Nozzle Spray Gun 145722
Part number: 145722
Nozzle Size: 1.7
HVLP: Extra Economical - HVLP paint spray guns achieve particularly high transfer rates with their low-pressure technology.
With 0.6 l QCC reusable plastic cup (Quick Cup Connector)
The SATAjet 100 B can be used for a wide range of applications due to its extreme flexibility in setting the atomisation pressure. Due to the wide spray fan and fine atomisation, fillers and primers can be applied in a continuous flow despite the higher material viscosity. This saves valuable working time due to less grinding effort.
Product Benefits
- Fine atomisation even at low inlet pressure
- Low overspray
- Pressure adjustment from 0.5 - 2.0 bar is possible
- Smoothly polished, ergonomically optimised gun body
- QCC- cup connection
- Self-adjusting sealings
Suitable areas of application: Car Refinish
| Air consumption | 12.4 cfm |
| Max. inlet air pressure | 145.0 psi |
| Packaging unit | 1.0 Pieces |
| Net weight | 0.203 - 2.456 lbs |
| Recommended air inlet pressure | 29.0 psi |
| Recommended spraying distance | 4 - 6 inch |
| Cup connection type | QCC |
| Nozzle Size | 1.7 |
| Nozzle Technology | HVLP |
| Color Code System (CCS) | + |
| QCC | + |
| Compatibility with SATA RPS - multi-purpose cups / LCS | + |
| SATA adam compatibility | + |
