Product Overview
Suitable for water- and solvent-based paint systems.
Nozzle Technology: HVLP (High volume low pressure). Extra Economical - HVLP paint spray guns achieve particularly high transfer rates with their low-pressure technology.
Nozzle type: Standard
I-Nozzle Spray fan: Designed for control. It produces a flat, long, and narrow parallel fan pattern with softer, more uniform edges. It lays material down slightly thinner, making it ideal for painters with a slower hand or those struggling with metallic/pearl orientation.
O-Nozzle Spray fan: Designed for speed. It produces the traditional, classic SATA oval pattern—shorter and wider with a wetter, more concentrated core. It allows for faster arm speed, is great for high-solids clear coats, and builds film thickness per layer faster than the "I".
Display: built in handle, pressure readings in BAR units only. There is no possibility to switch to PSI.

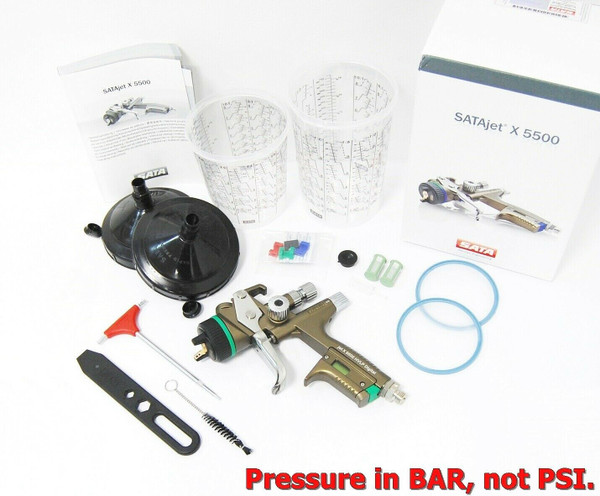

2 pcs. RPS (0.6l / 600cc and 0.9l / 900cc) cups included.
Sealed package by manufacturer.
1.3 I nozzle / Part number: 1062025 / EAN: 4027533237709
1.3 O nozzle / Part number: 1062124 / EAN: 4027533237648
Main areas of application:
- Car refinishes - clearcoat, Base / Single St., Blending;
- Carpentry - Clearcoat, Base / Single St., Repair;
- Decorative painting.
- Yacht and boat building - Clearcoat, Single Stage, Wood Clearcoat, Effect Paint, Wood Glaze.
Technical data
Air connection thread: 1/4" (male thread)
Air connection thread: with swivel joint
Air consumption: 430 l/min
Air inlet pressure field of application: 0.5 - 2.4 bar
Digital unit version: Expandable
Max. storage temperature: 60 °C
Min. storage temperature: -20 °C
QCC: Yes
Quick change: Yes
Recommended dynamic inlet air pressure (compliant / HVLP): 2 bar
Recommended spraying distance: 10 - 15 cm
Spraygun Cup System: RPS
