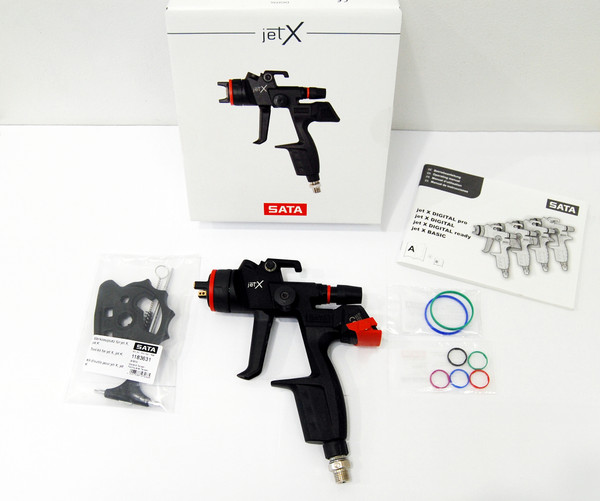

SATA jet X RP DIGITAL PRO Paint Spray Gun

Premium spray gun for automotive refinish, suitable for water‑ and solvent‑based basecoats as well as 1K/2K topcoat systems.

Nozzle Technology: RP: Extra Fast - RP spray guns stand for maximum working speed with optimized high-pressure technology and low overspray.

1.2 I nozzle / Part number: 1200394 / EAN: 4027533275954
1.3 I nozzle / Part number: 1200477 / EAN: 4027533275879
1.3 O nozzle / Part number: 1200518 / EAN: 4027533275831

I (Control) Spray Fan: the I, or Control, nozzles produce a longer spray pattern with an even material distribution. They have a slower application speed but offer maximum control.

O (Speed) Spray Fan: the “O”, or “Speed”, nozzles have an oval fan shape with a larger fade-out zone and a wetter core, which results in a higher application speed.

Compatible with the efficient SATA RPS multi-purpose cup system and the SATA LCS Liner Cup System (not included)

Unit version: DIGITAL pro

Compatible with the efficient SATA RPS multi-purpose cup system and the SATA LCS Liner Cup System (not included)

Innovative labyrinth airflow system: YES

Air inlet with swivel joint and air micrometer: YES

Removable trigger with tool for the fluid tip: YES

QAC (Quick Adam Connector): YES

With Digital Gauge Adam X Pro (1202001)

• Mounting on the QAC without docking station:    Yes
• Inlet pressure display:    Yes
• Conversion bar/psi:    Yes
• Target pressure input:    Yes
• Alarm function for when system exceeds or falls below the target pressure:    Yes
• Operating time indicator:    Yes
• Ambient temperature indicator:    Yes
• Conversion °C/°F:    Yes
• Battery status indicator:    Yes
• Double-tap operation:    Yes
• Tilt operation:    Yes
• Data on operating hours, painting time and number of trigger pulls:    Yes
• Transfer of important parameters to the digital dashboard:    Yes

Main areas of application: Car refinish (for Basecoat and Clearcoat)

Balanced - in every respect

The jet X DIGITAL ready is approx. 50 grams lighter than its predecessor, the SATAjet X 5500. The ergonomic gun body sits comfortably in the hand and is balanced so that it does not become top-heavy even with a large filled cup.

The innovative labyrinth airflow system guides the air in the nozzle so that it exits free of turbulence and pulsation - the result is exceptionally fine and homogeneous atomisation. The optimised material distribution and the even spray pattern with clearly defined fade-out zones result in a controlled and immediate painting feel. Uniform spray pattern with clearly defined fade-out zones. The jet X is the new reference in the premium class.

Innovative labyrinth airflow system

The nozzle concept of the jet X is based on the innovative labyrinth airflow system. It guides the air in the nozzle in such a way that it exits each orifice at exactly the same pressure and free of turbulence and pulsation. This enables us to achieve exceptionally fine and homogeneous atomisation - and a new level of surface quality, both for HVLP and RP technology.

Easy to clean: the detachable trigger

The trigger made of technical polymer can be removed in one easy step - without tools and without snap rings. This makes maintenance easier and cleaning more thorough. Clever additional benefit: the integrated tool can be used to loosen or tighten the fluid tip.

3 in 1: the innovative air inlet

The air micrometer for setting the dynamic inlet pressure is located at the air inlet. It allows convenient and precise adjustment of the air pressure. The practical swivel joint is also integrated.
